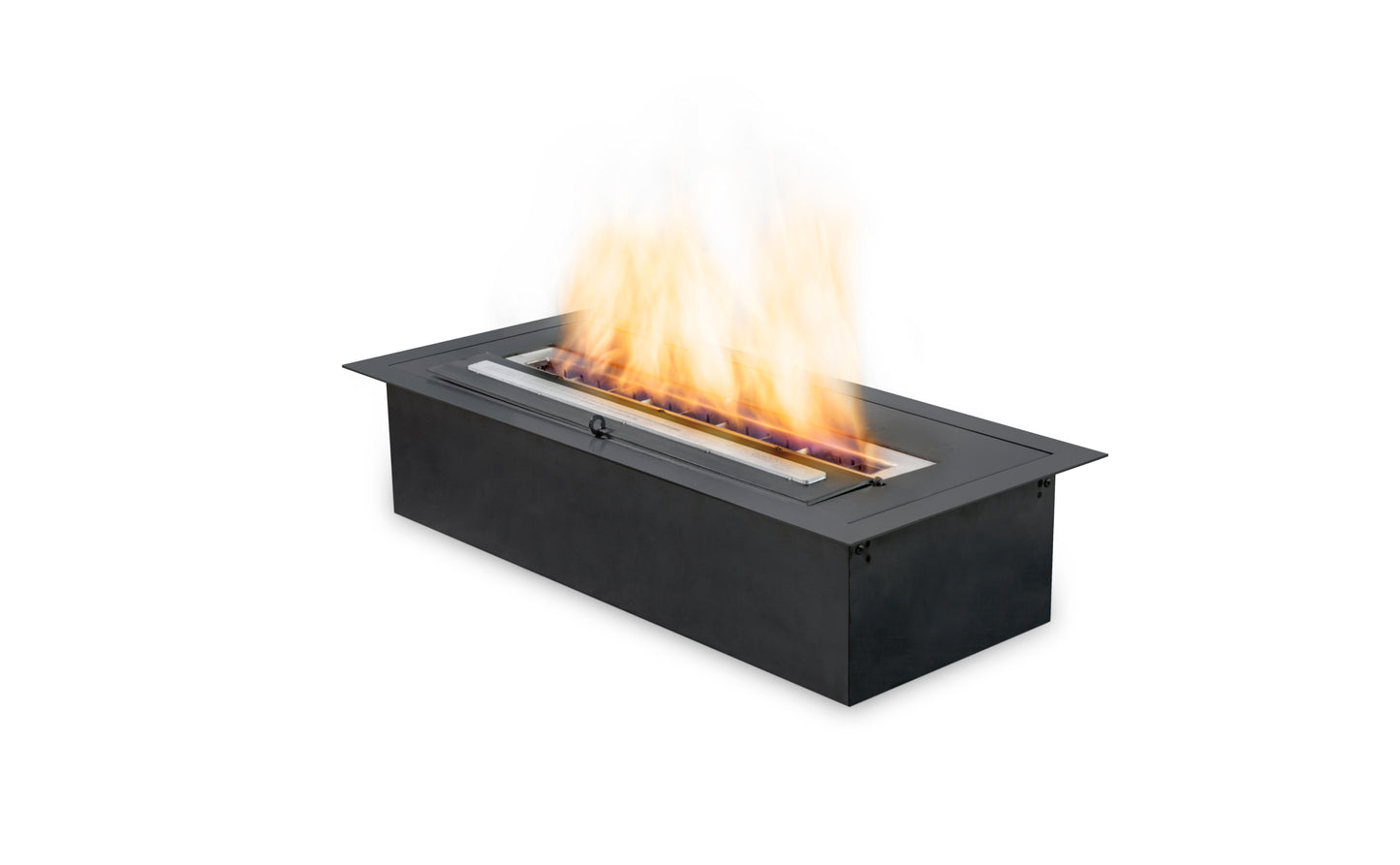

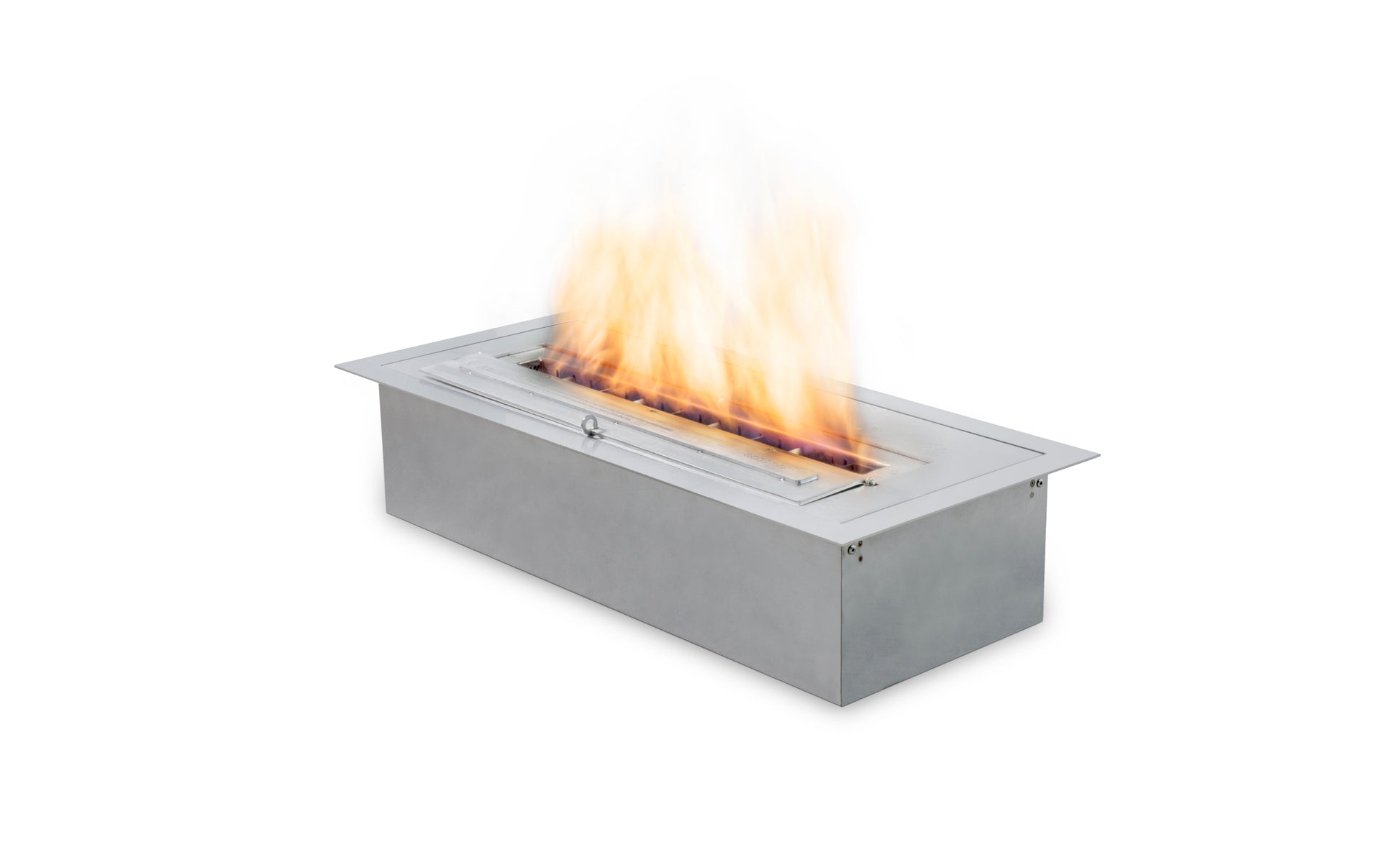

• Rectangular fire pit with flames on a white background

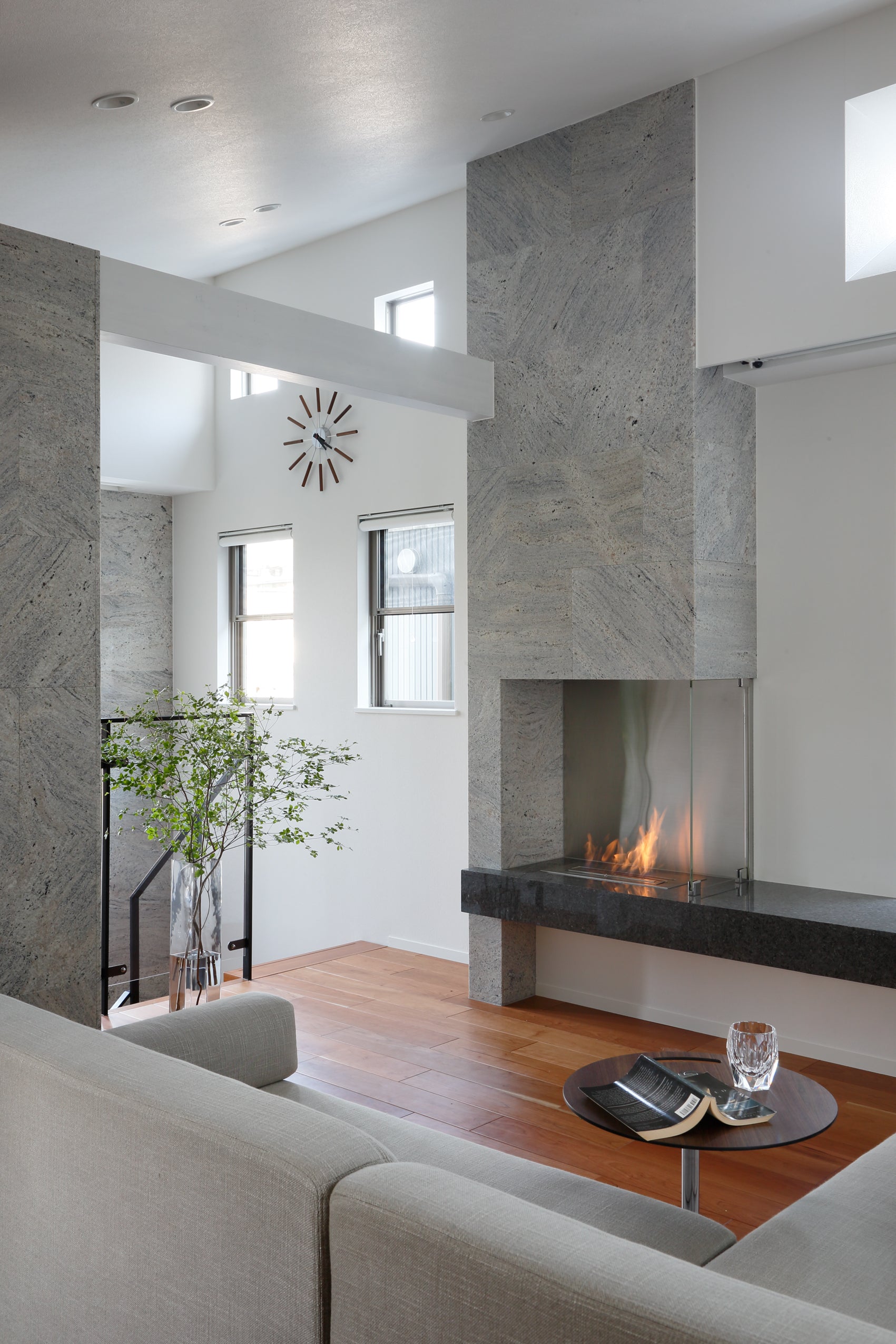

  • Modern living room with a fireplace, gray walls, and a white ceiling.

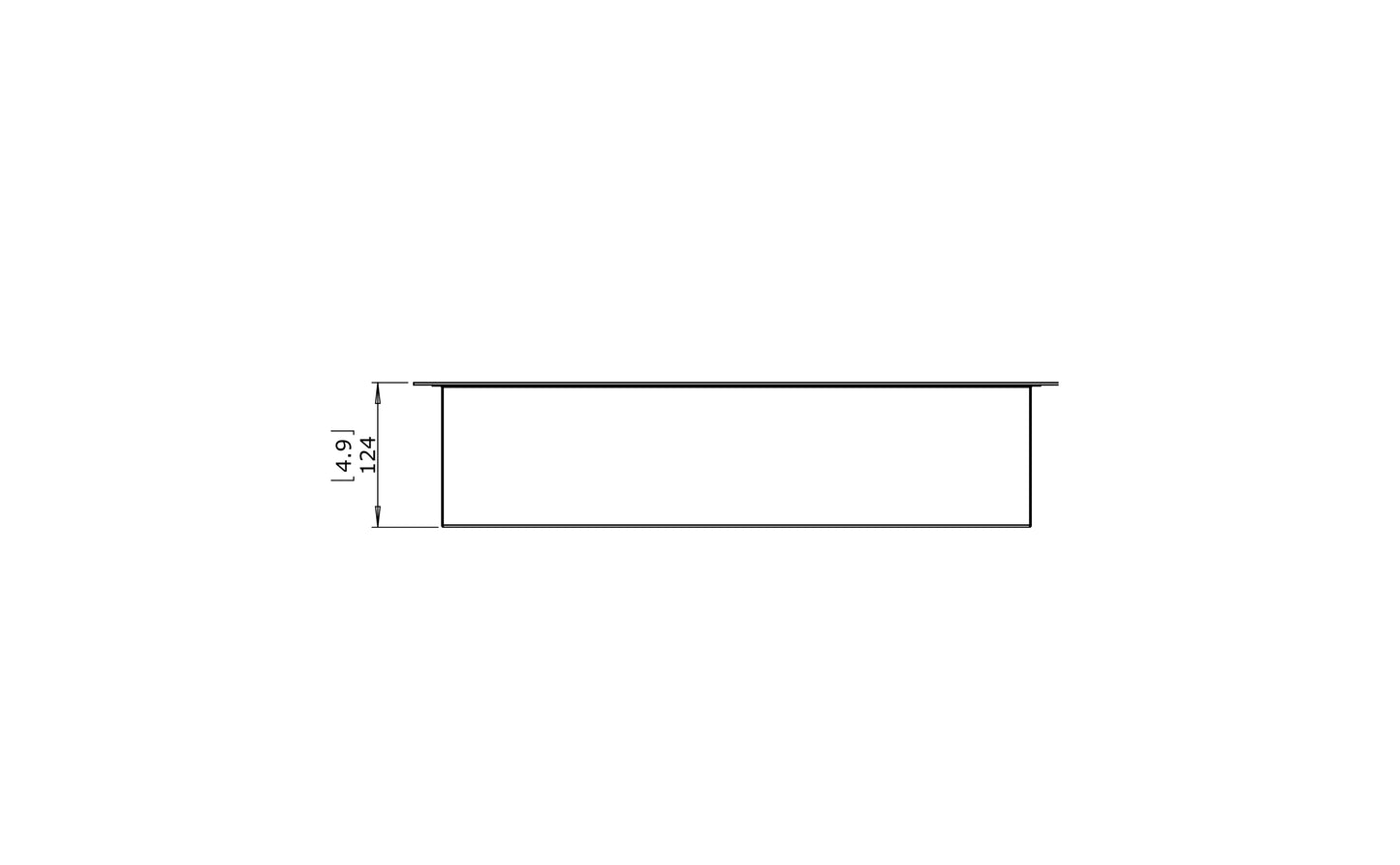

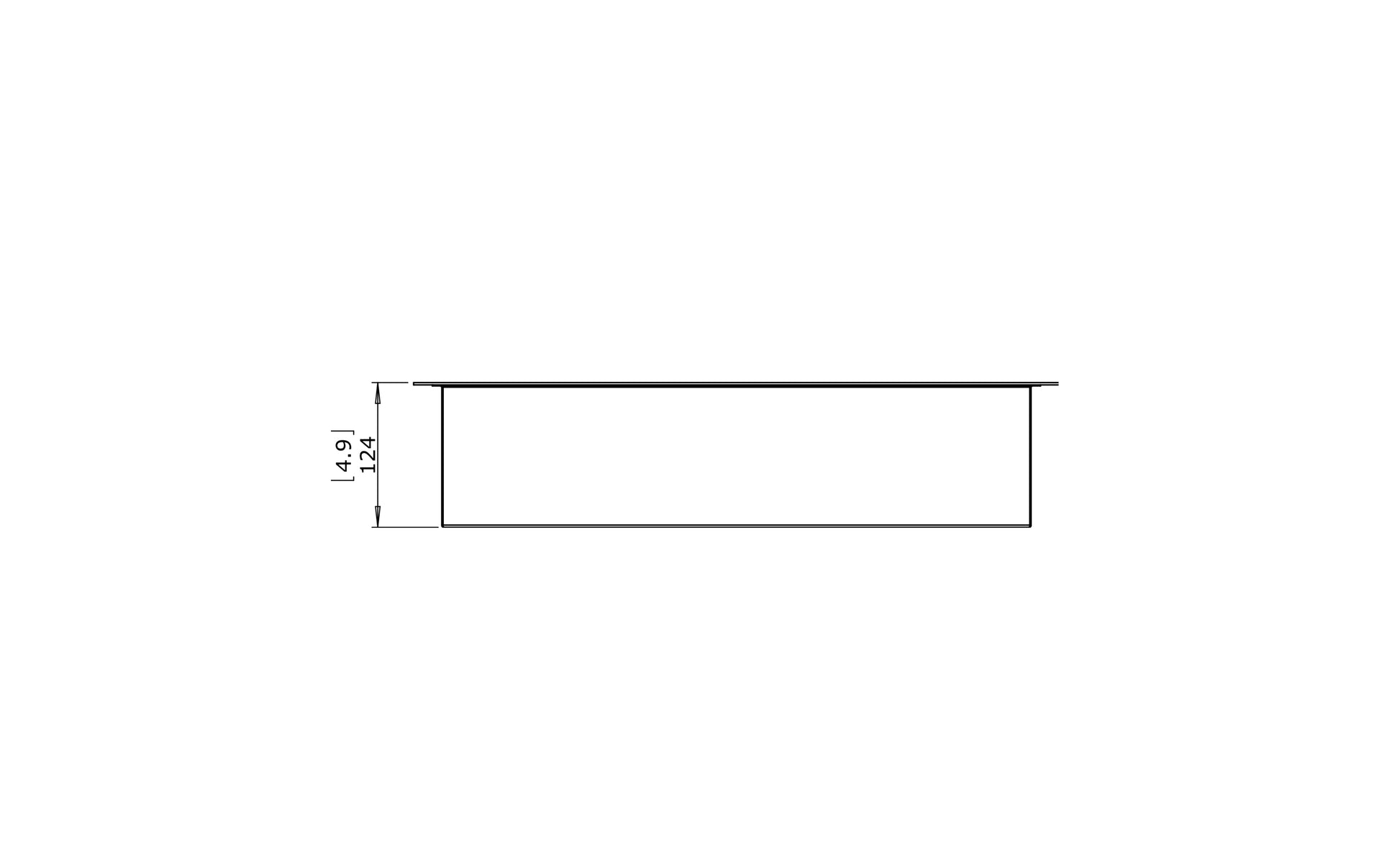

  • Technical drawing of a rectangular object with dimensions on a white background

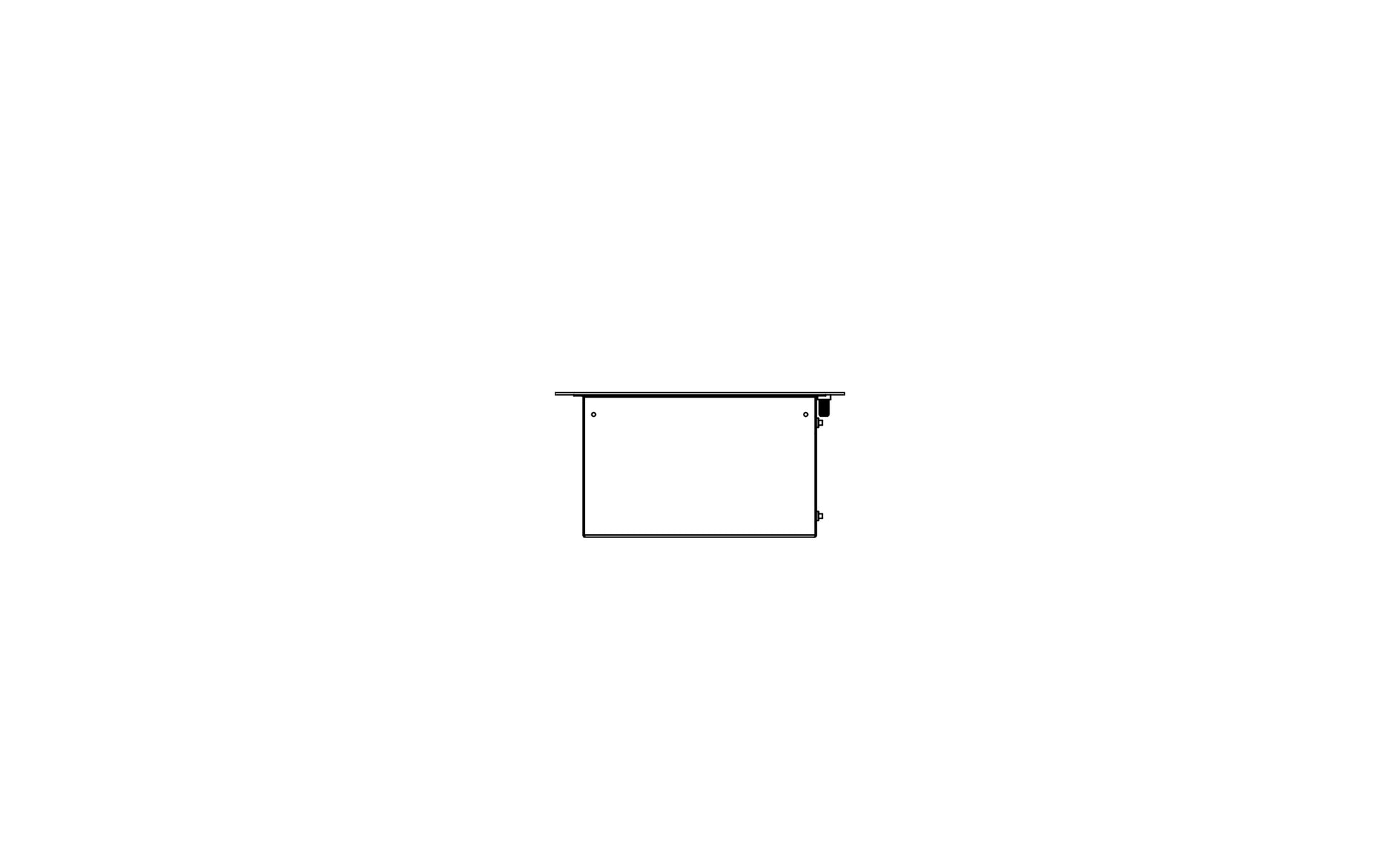

  • Outline of a rectangular table on a white background

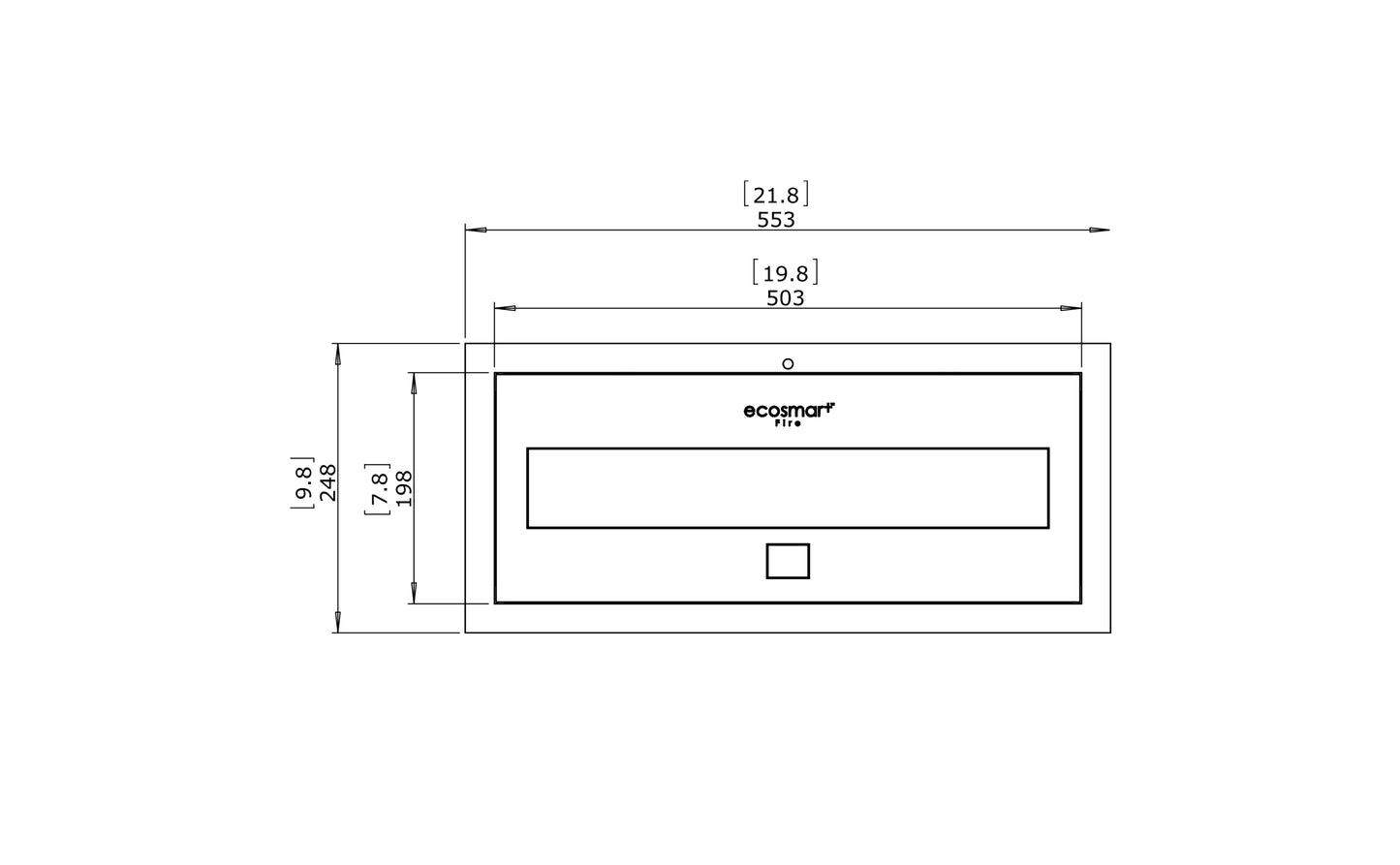

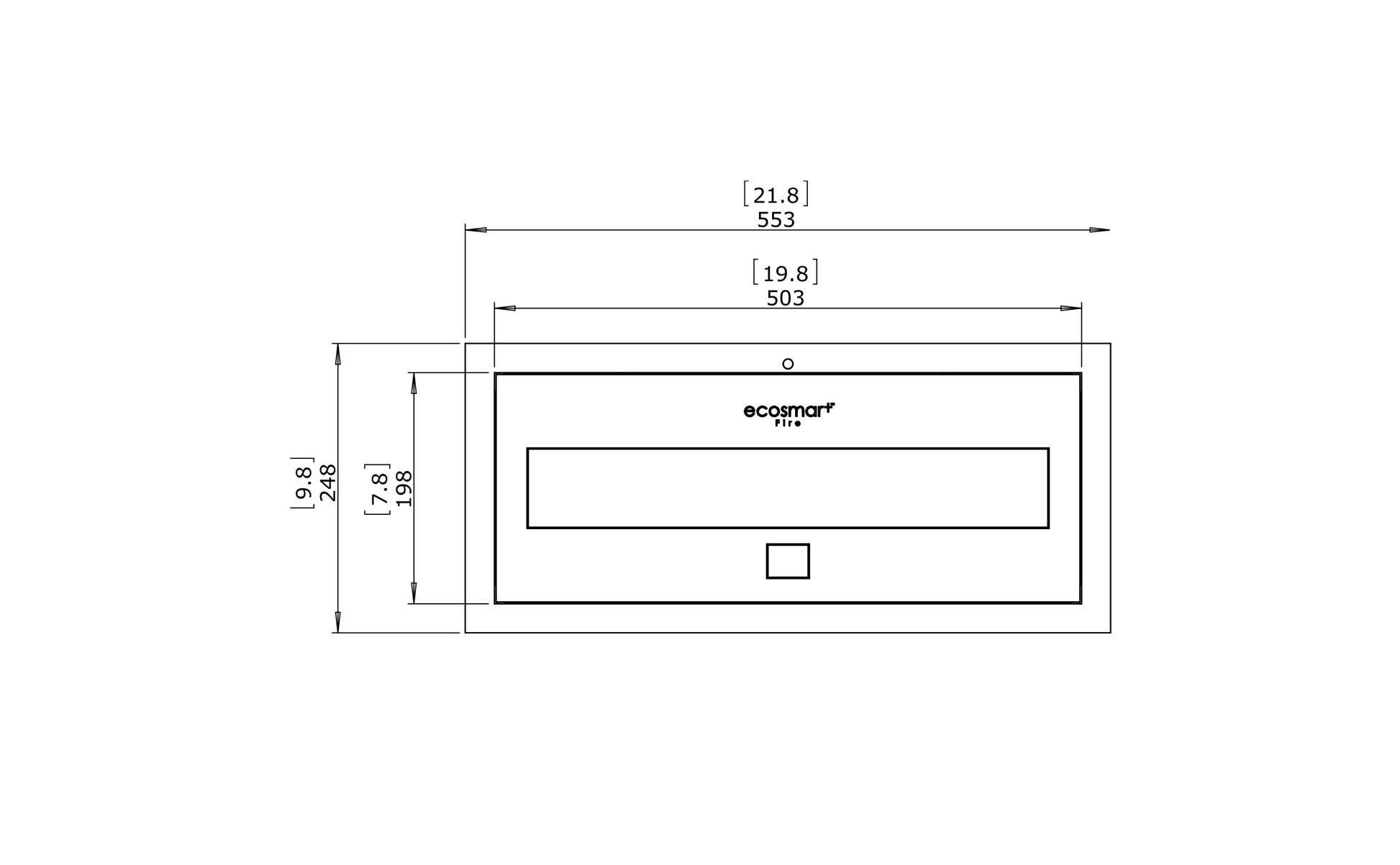

  • Technical drawing of a rectangular product with dimensions and Ecomar branding.

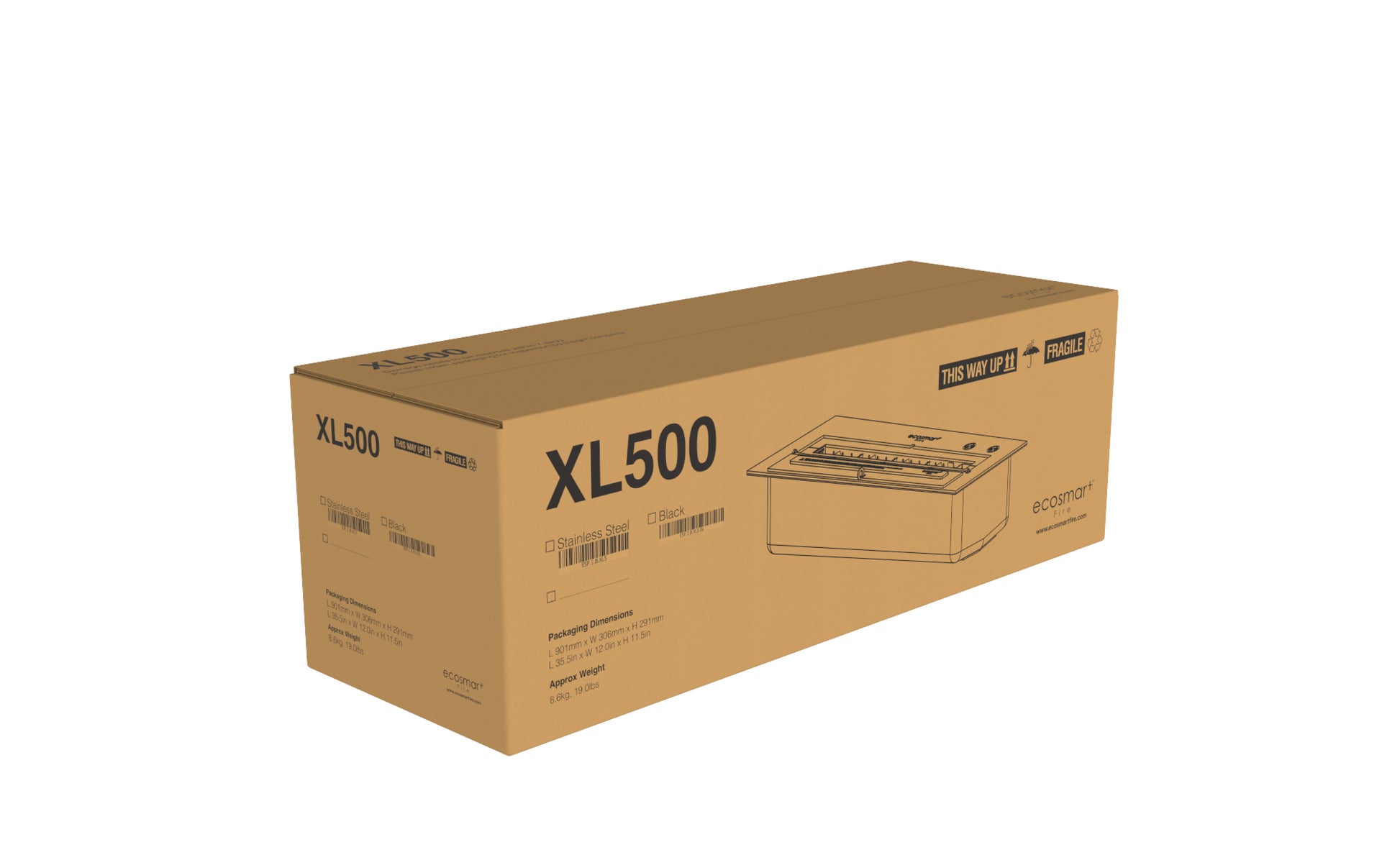

  • Cardboard box with 'XL500' branding on a white background

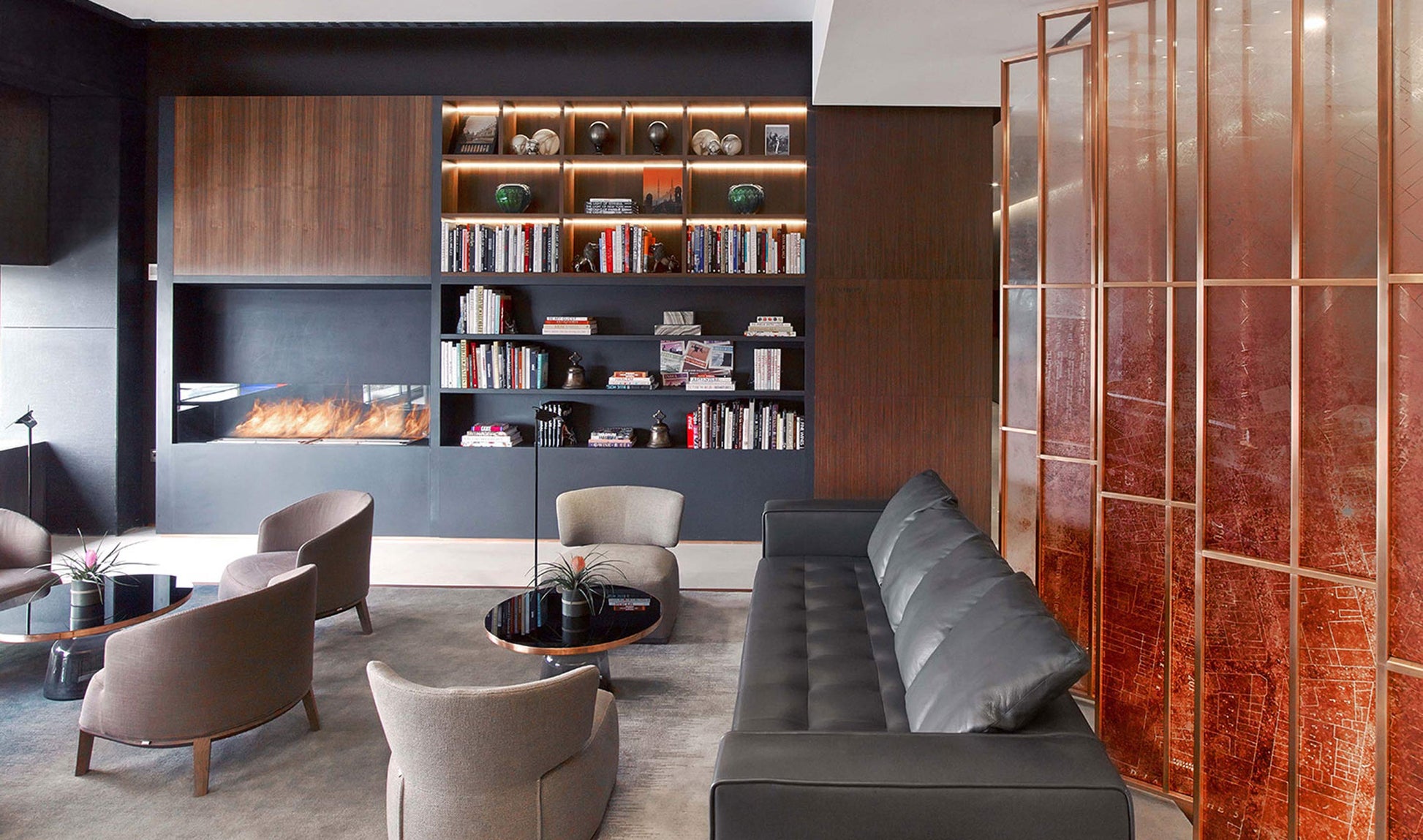

  • Modern living room with a fireplace, bookshelf, and decorative elements.

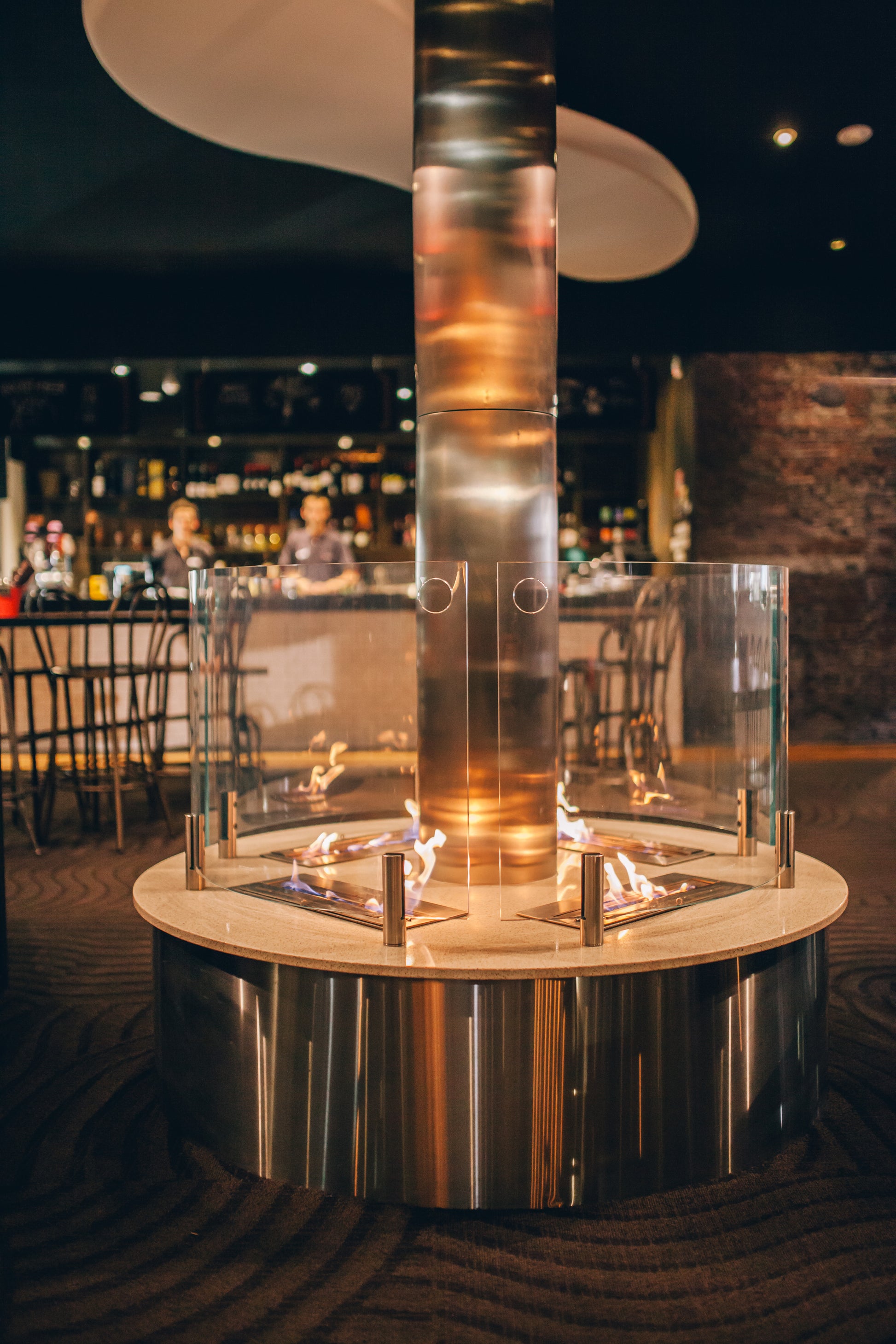

  • Modern indoor fire pit with glass design in a restaurant setting

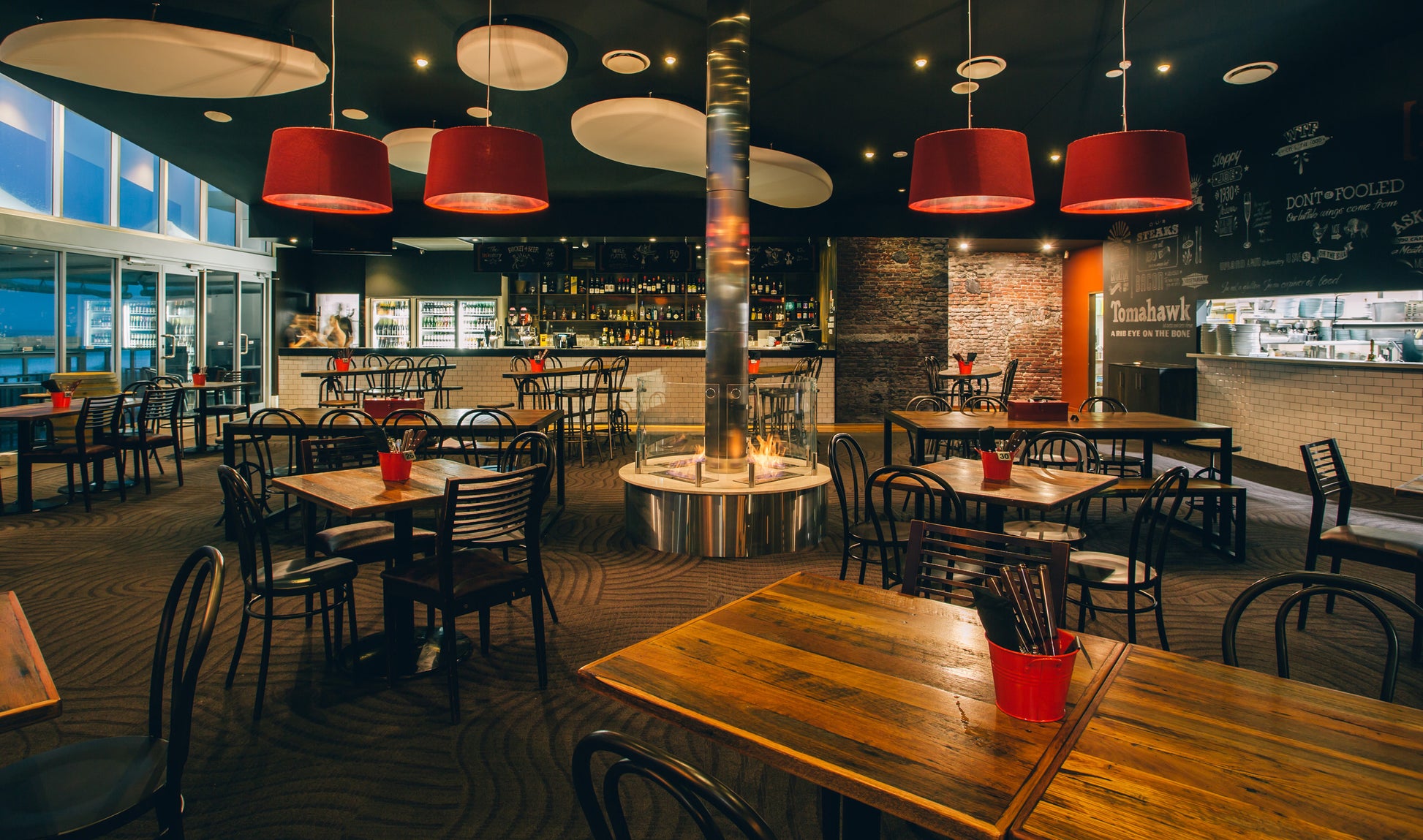

  • Modern restaurant interior with wooden tables, red chairs, and pendant lights.

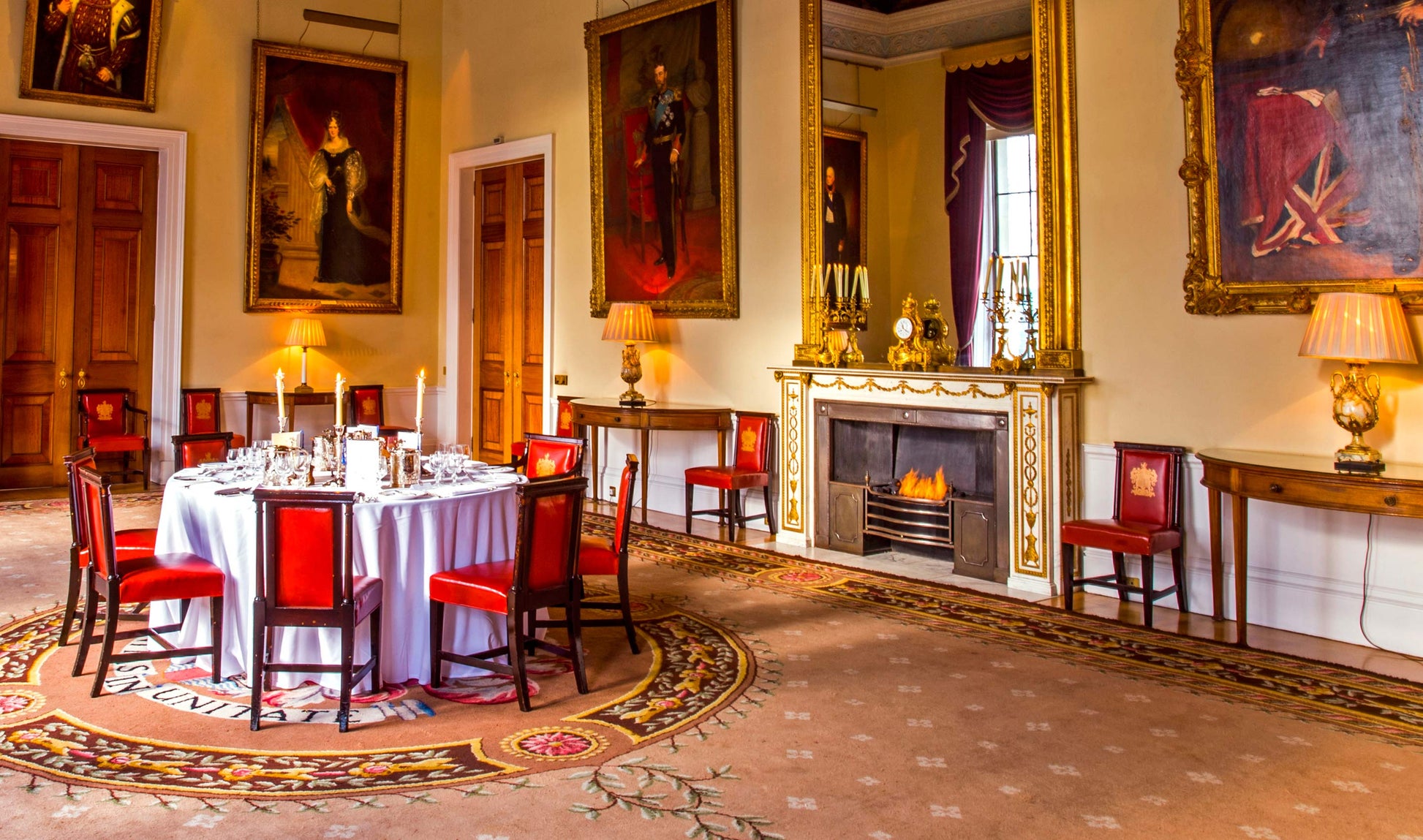

  • Elegant dining room with red chairs, a round table, and decorative wall art.

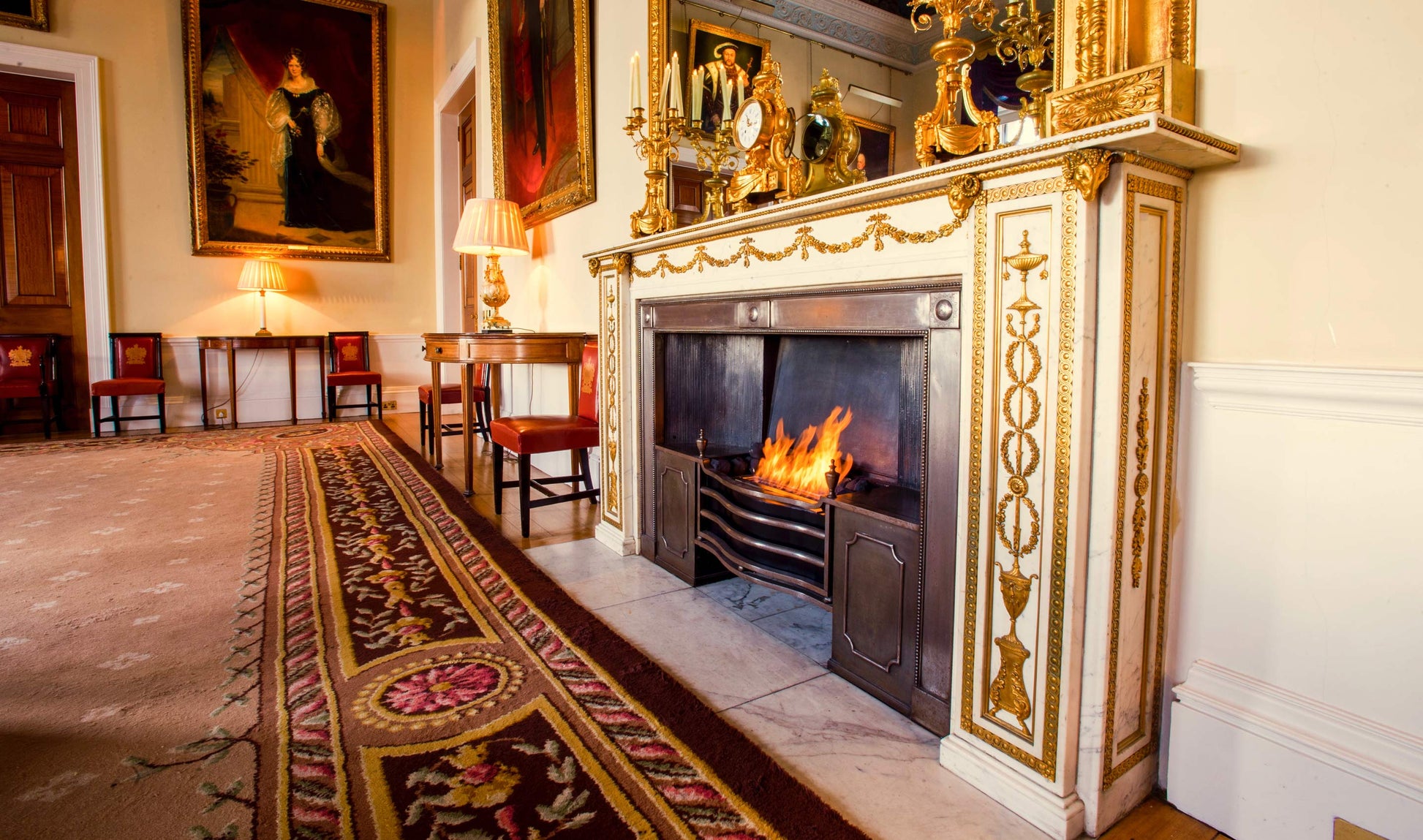

  • Grand room with ornate fireplace and decorative elements

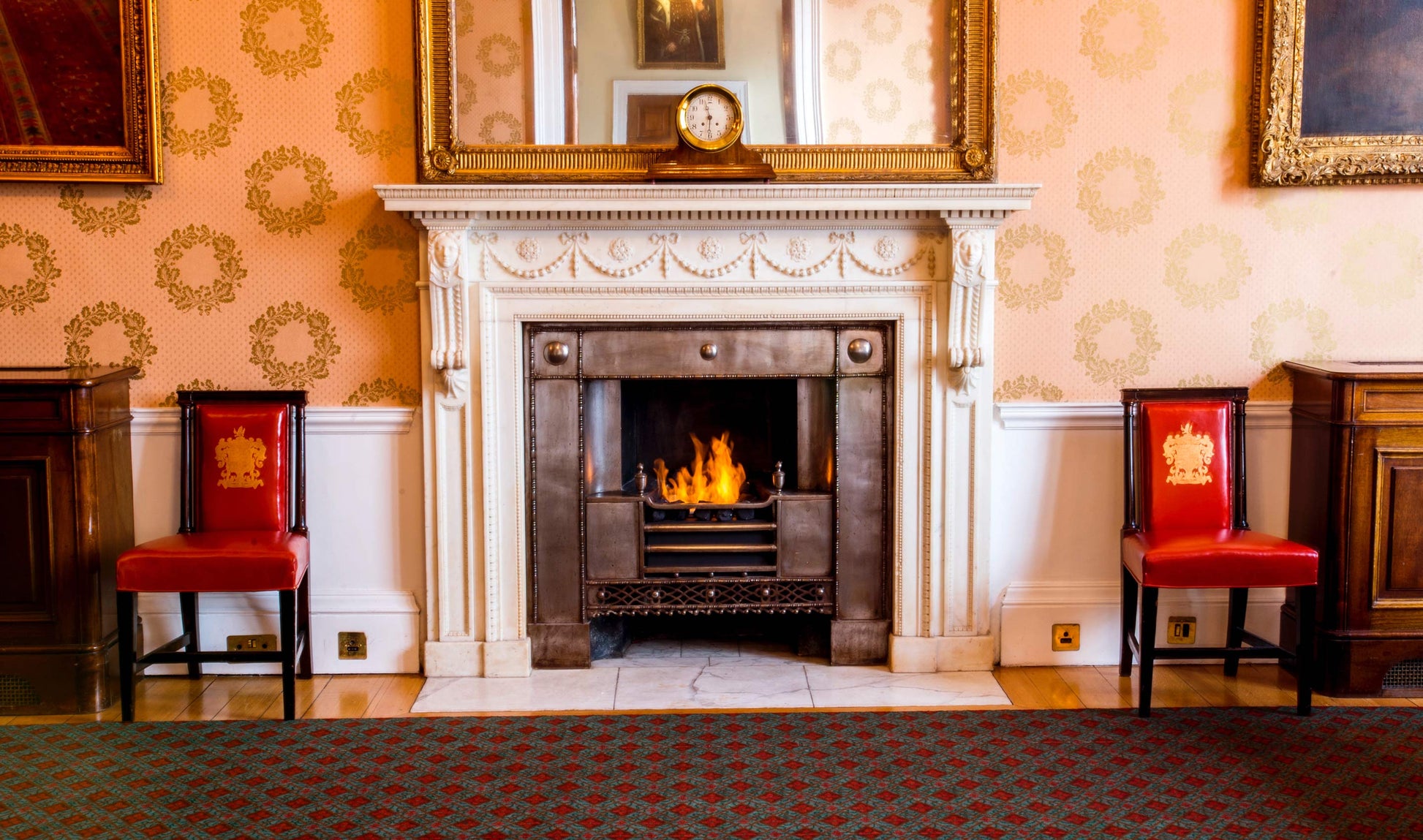

  • Fireplace with red chairs on either side in a room with decorative wallpaper.
1 12

EcoSmart Fire

EcoSmart Fire XL500 Ethanol Burner Insert

EcoSmart Fire XL500 Ethanol Burner Insert

ESF.B.XL5.WTT.ST

$1,646.25 AUD
$2,195.00 AUD $1,646.25 AUD
Sale Sold out
Shipping calculated at checkout.

Color

Time-sensitive delivery? See below*

*Please Note: Products not in stock may need to be ordered - please contact us prior to placing your order to check stock levels if time sensitive delivery is required. View our shipping and delivery page here for more information.

Specificatons

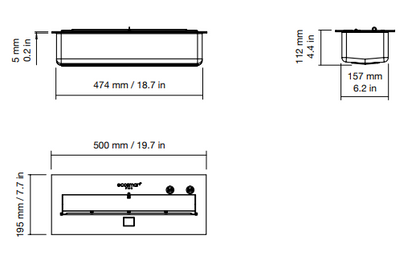

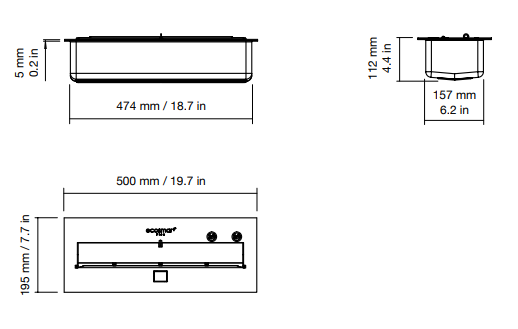

  • Dimensions: 500mm (L) x 195mm (W) x 112mm (H)
  • Weight: 6.5kg
  • Fuel Capacity: 5 litres
  • Burn Time: 10-13 hours
  • Heats on Average: 40m2 indoors
  • Minimum Room Size: 80m3
  • Thermal Output: 12 MJ/h, 11430 BTU/h, 3.4 kW

* These values are indicative only and may vary depending on the installation environment, the composition of the bioethanol used and level of fuel in the burner.

What's Included

  • 1x Stainless Steel XL500 Burner
  • 1x Fire Lighter
  • 1x Stainless Steel Lighting Rod
  • 1x XL500 Baffle set for flame reduction
  • 1x 5L no-spill Jerry Can with flame arrestor
  • 1x E-nrg Bottle Adaptor
  • Installation and Operation Manuals

Optional Accessories*:   XL500 Twin Skin Top Tray (*custom indoor settings must incorporate a ‘Top Tray’)

Materials & Finishes

Burner Material: Stainless Steel Grade 304 (optional black ceramic coating)

Finishes Available: Stainless Steel, black ceramic coating

Great For

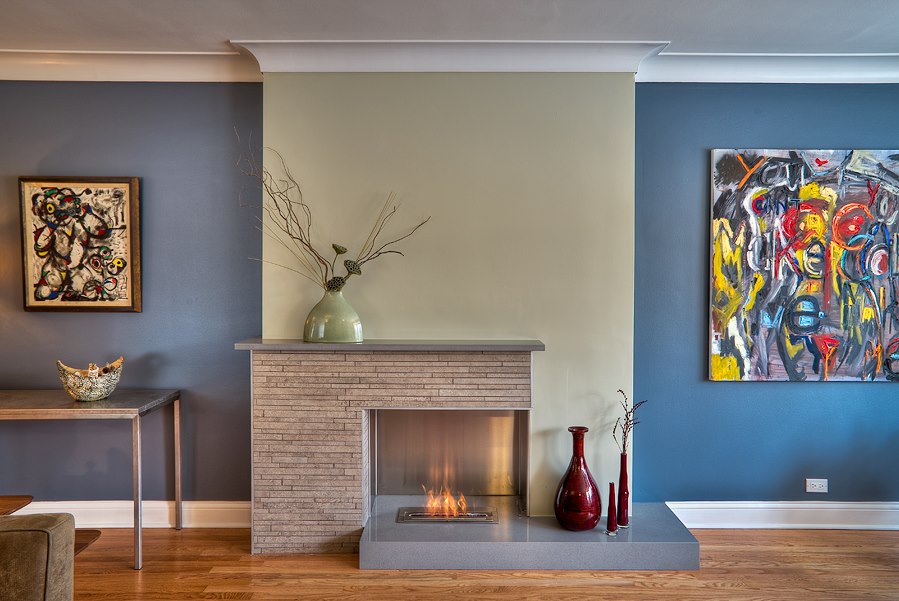

  • Existing Fireplace Conversions
  • Bespoke fire settings
  • Bench Style open fires
  • Specially made cabinetry
  • Custom made Free-Standing Designs

Download our free resources

Access helpful resources about this product.

Which document would you like?

EcoSmart XL500 Ethanol Burner

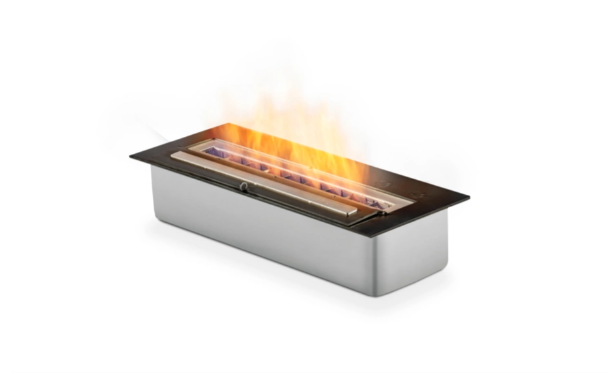

The smallest of the XL linear range, the XL500 is a popular model providing generous heat output within a compact design. This model conveniently fits within many existing fireplace hearths or can be integrated into a custom-built feature to create a stunning linear flame. The XL500 burner features a flip-lid shut-off system for easy flame control and includes baffle inserts for adjustable heat and flame regulation — offering an efficient burn with reduced running costs when ambience is your main focus.

Why You'll Love It:

Most compact linear model - The smallest XL linear burner, offering efficient performance in a sleek, space-saving form.
Quick installation - No flue, gas or electricity required, allowing for simple installation and flexible design applications.
Design flexibility - Create your own unique open fire feature in your chosen non-combustible setting, or retrofit into an existing hearth.
Reliable safety - Deep-draw fabrication eliminates potential leaks. Optional twin-skin tray provides added safety for indoor applications.
Solid construction - Manufactured from 304 stainless steel, with no parts requiring replacement throughout the life of the burner.
Extended burn time - Efficiency baffles included to achieve up to 13 hours of burn time, depending on conditions.
Black burner option - Upgrade to black ceramic coating for a durable finish that won’t oxidise, corrode, or discolour under heat.
Effortless ambience - Instant on/off with a clean-burning flame to create warmth and atmosphere without smoke, ash, or soot.
Safe and reliable - Australian ACCC Safety Mandate compliant. Burner includes a two-year warranty.

Sustainable Fire, Anywhere:

No flue. No electricity. No gas connection. Just fill it with e-NRG bioethanol, light it up, and enjoy the warmth and glow - indoors or out.

View full details

Design Meets Performance. No Compromises.

  • Icon of a flame and leaf in gold on a white background

    No Flue, No Electricity, No Gas

  • Icon of a plant with circular arrows around it on a white background

    Eco-Friendly, No Smoke, No Harmful Emissions

  • Icon of a screwdriver on a white background

    Quick & Easy Setup
