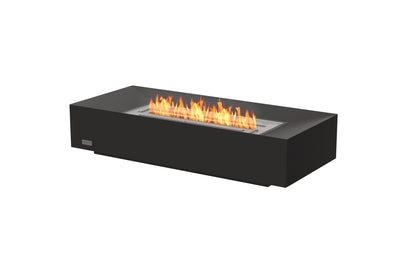

• Black fire pit table with flames on a white background
  • Modern living room with a fireplace, plant, and framed artwork.

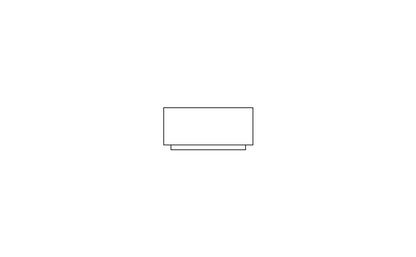

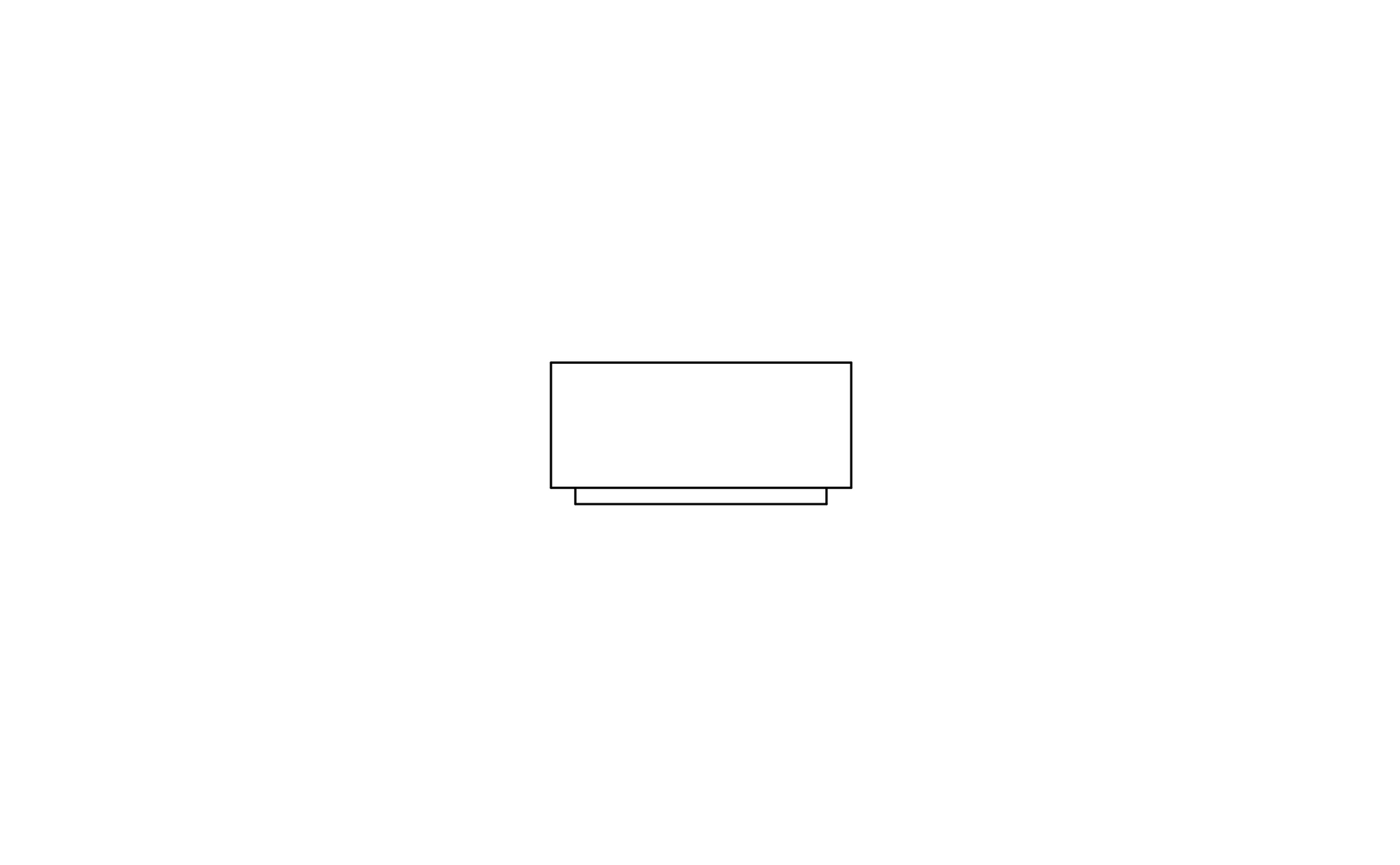

  • Outline of the side of a fireplace grate on a white background

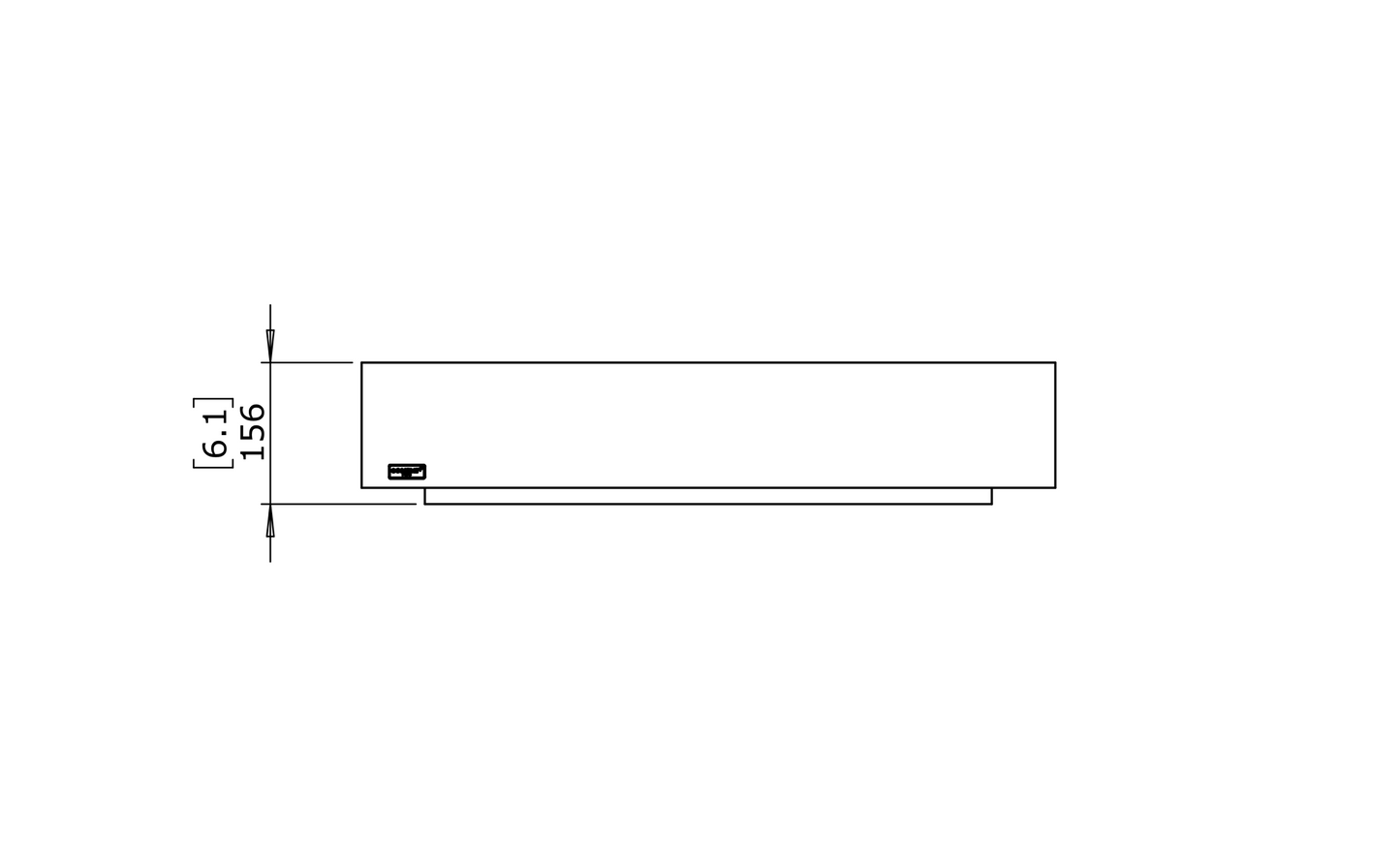

  • Technical drawing of a rectangular object with dimensions on a white background

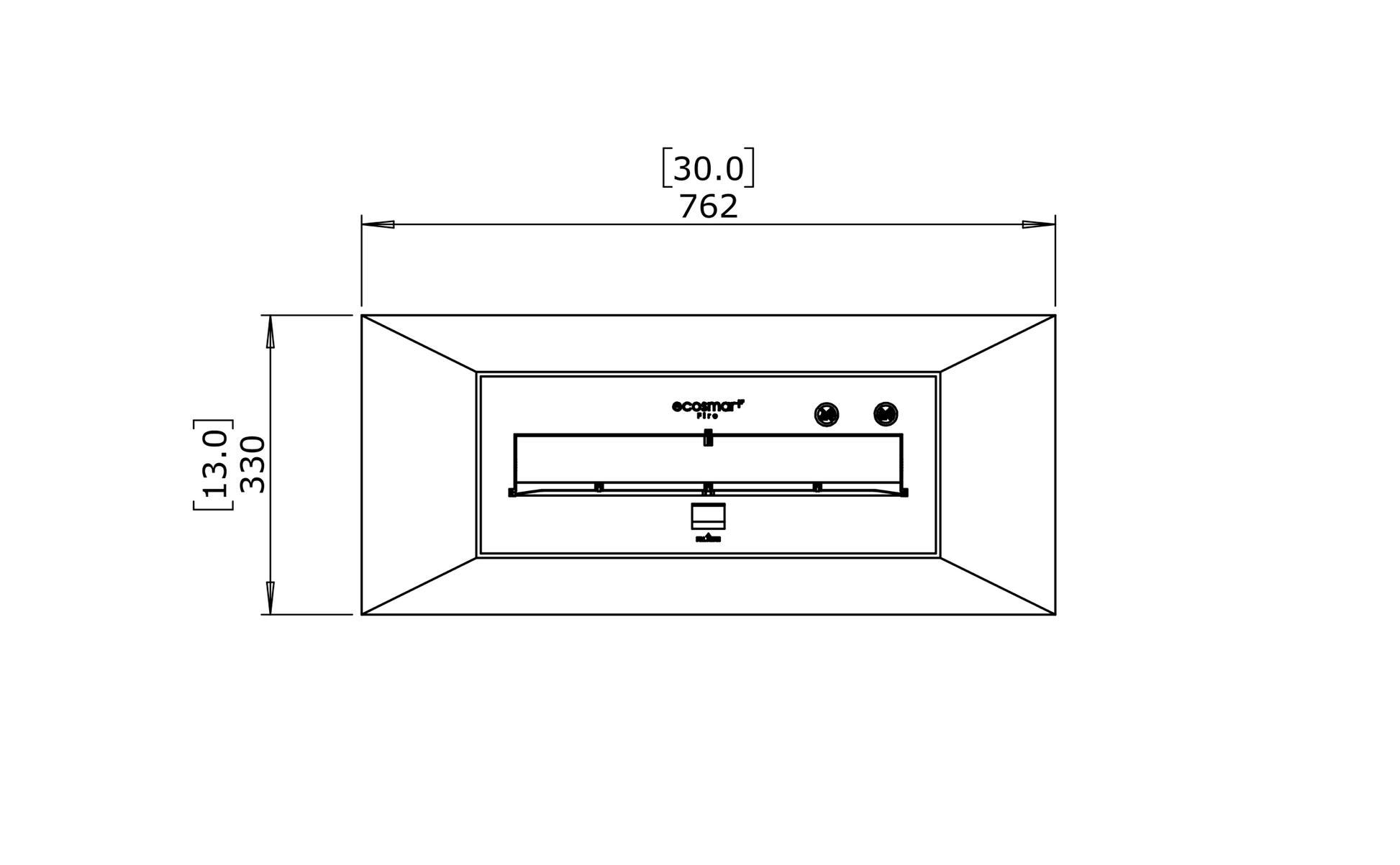

  • Technical drawing of a rectangular object with dimensions and brand name on a white background
  • Cardboard box with 'GRATE 30' branding on a white background
1 6

EcoSmart Fire

EcoSmart Fire Grate 30 Ethanol Fireplace Grate

EcoSmart Fire Grate 30 Ethanol Fireplace Grate

ESF.G.GRA.30

$2,246.25 AUD
$2,995.00 AUD $2,246.25 AUD
Sale Sold out
Shipping calculated at checkout.

Color
Burner Insert
Power Source

Time-sensitive delivery? See below*

*Please Note: Products not in stock may need to be ordered - please contact us prior to placing your order to check stock levels if time sensitive delivery is required. View our shipping and delivery page here for more information.

Specificatons

  • Dimensions: 762mm (L) x 330mm (W) x 156mm (H)
  • Weight: 18.7kg
  • Fuel Capacity: 5 litres
  • Burn Time: 10–13 hours
  • Heats on Average: 40m2 indoors
  • Minimum Room Size: 80 m3
  • Thermal Output: 12 MJ/h, 11430 BTU/h, 3.4 kW

* These values are indicative only and may vary depending on the installation environment, the composition of the bioethanol used and level of fuel in the burner.

What's Included

  • 1x Stainless Steel XL500 Burner
  • 1x Grate 30 composite concrete setting
  • 1x XL500 Efficiency baffles
  • 1x Fire Lighter
  • 1x Stainless Steel Lighting Rod
  • 1x 5L no-spill Jerry Can with flame arrestor
  • 1x E-nrg Bottle Adaptor
  • Installation and Operation Manuals

Materials & Finishes

Burner Material: Stainless Steel Grade 304

Finishes Available: Composite Concrete

Great For

  • Existing Fireplace conversions
  • Non-working Traditional Hearths
  • Existing Gas Fireplace Hearths
  • Wood-burning fireplace conversions

Download our free resources

Access helpful resources about this product.

Which document would you like?

EcoSmart Fire Grate 30

With an elegant linear flame slightly shorter in length than the Grate 36, the Grate 30 provides a narrower fireplace insert ideal for more compact settings. Housing the EcoSmart Fire XL500 bioethanol burner, this model produces clean-burning heat for up to 40m² and a mesmerising flame for as long as 13 hours.

Crafted from durable Fluid™ Concrete in a sleek black finish, the Grate 30 seamlessly complements both traditional and modern interiors. Installation is simple — just place it on a level platform using our easy fitting system, fill with bioethanol, and relax. Transform your existing fireplace into a stylish, eco-friendly feature with minimal effort and maximum impact.

Why You'll Love It:

Linear design for compact hearths - Sleek narrow format suited for smaller fireplace openings or spaces.
Quick installation - No flue, gas or electricity required, making it easy to retrofit into existing fireplaces.
Effortless ambience - Instant on/off with a clean-burning flame that creates warmth and atmosphere without smoke, ash, or soot.
Sleek black setting - Made with strong yet lightweight Fluid™ Concrete featuring a smooth, modern finish.
Extended burn time - Efficiency baffles enable up to 13 hours of burn time, depending on conditions.
Safe and reliable - Australian ACCC Safety Mandate compliant. Burner includes a two-year warranty.

Sustainable Fire, Anywhere:

No flue. No electricity. No gas connection. Just fill it with e-NRG bioethanol, light it up, and enjoy the warmth and glow - indoors or out.

View full details

Design Meets Performance. No Compromises.

  • Icon of a flame and leaf in gold on a white background

    No Flue, No Electricity, No Gas

  • Icon of a plant with circular arrows around it on a white background

    Eco-Friendly, No Smoke, No Harmful Emissions

  • Icon of a screwdriver on a white background

    Quick & Easy Setup
